คำอธิบาย
| Brand | ASUS |
| Model | ROG STRIX B860-A GAMING WIFI |
| CPU Support | Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| CPU Brand | Intel |
| Socket | 1851 |
| Chipset | B860 |
| Memory Support | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Maximum Memory Bus | 8600 |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB4® (20Gbps) ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** In USB4® mode, supports up to 4K@60Hz, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10. ***** VGA resolution support depends on processors’ or graphic cards’ resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Multi Graphic Support | N/A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset |
| Maximum PCIe Version | PCIe 5.0 |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) Intel® B860 Chipset |
| M.2 Storage Type Support | NVMe, SATA |
| M.2 Slot | 4 |
| USB | Rear USB (Total 10 ports) 1 x USB4® (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related Storage Related USB Miscellaneous |

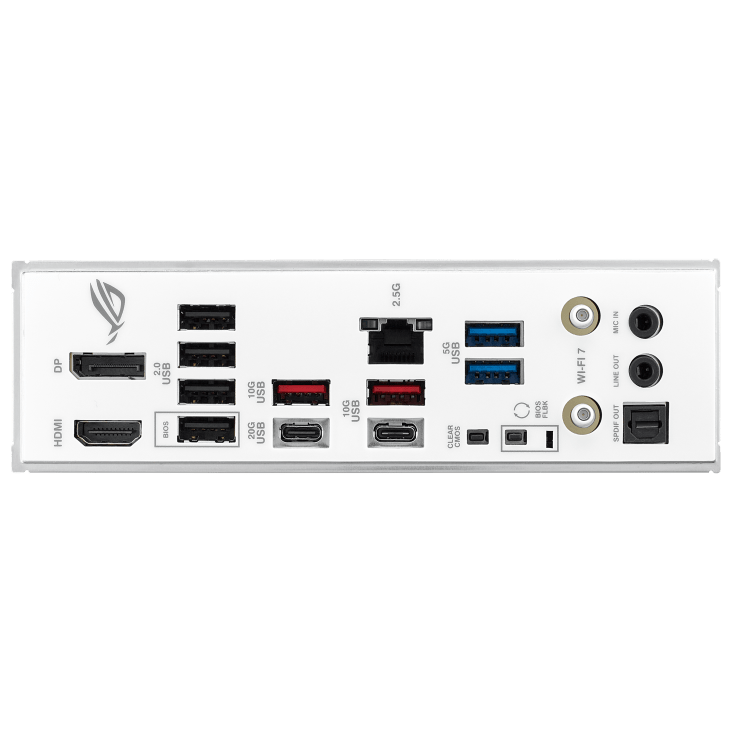

| Back Panel Connectors | 1 x USB4® (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| LAN | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless Data Network | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| Form Factor | ATX |
| H/W Monitoring | N/A |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Special Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync |
| Software Features | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software UEFI BIOS |
| Operating System Support | Windows 11 |

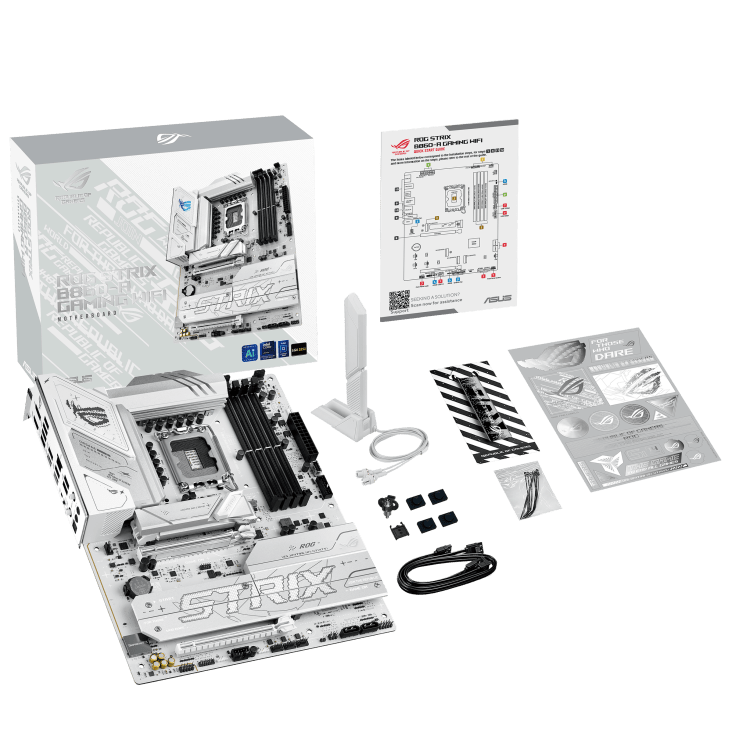

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous Documentation |
